Sliding Gate vs Swing Gate: Which Automatic Gate Is Best for Your Property?

Investing in an automated entry gate is one of the most effective ways to elevate property security, enhance curb appeal, and boost overall real estate value. However, once you decide to automate your driveway entrance, you immediately face a fundamental decision: Should you install a sliding gate or a swing gate?

While both choices deliver security and modern convenience, they operate on vastly different mechanical principles, demand distinct physical space configurations, and react differently to terrain and weather conditions. Choosing the wrong mechanism can lead to costly site alterations, frequent maintenance headaches, or even complete operational failure on sloped driveways.

In this deep-dive guide, we break down the mechanics, pros, cons, costs, and practical trade-offs between sliding gates and swing gates to help you determine the ideal fit for your driveway.

Sliding Gate vs Swing Gate Comparison. Source: Automated Gates Company

Direct Head-to-Head Comparison

To help you evaluate your options quickly, the table below highlights how sliding and swing automatic gates compare across core operational metrics:

Understanding Automatic Sliding Gates

Sliding gates operate horizontally across a driveway opening, moving parallel to an existing fence line or perimeter wall. They are the go-ahead choice for properties with short driveways or steep inclines.

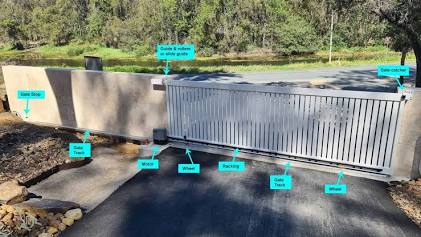

Sliding Gate Mechanical Setup. Source: BMGi Gate Automation

Mechanics: V-Track vs. Cantilever Systems

Sliding automatic gates typically fall into two distinct structural categories:

1. V-Track Sliding Gates: The gate frame rests on grooved wheels that roll along a solid steel V-track anchored into a continuous concrete footing across the driveway. A motorized pinion gear turns a rack mounted to the gate leaf to drive movement.

2. Cantilever Sliding Gates: Ideal for commercial properties or gravel driveways, cantilever gates do not touch the ground across the driveway opening. Instead, the gate is suspended over the driveway, supported by a counterbalance tail and internal roller assemblies mounted off to one side.

Key Advantages of Sliding Gates

• Maximizes Usable Driveway Space: Because the gate slides parallel to your wall, vehicles can park right up to the gate line without blocking movement.

• Handles Steep Incline Driveways: If your driveway slopes upwards immediately after entering from the street, a sliding gate eliminates the physical clearance issues that stop inward-swinging gates.

• Higher Structural Security: Once locked in its end receiver pocket, a sliding gate is extremely difficult to force open or push through with a vehicle.

• Wind Resistance: Solid wooden or privacy metal sliding panels stand firm during heavy storms because they move sideways rather than pushing into the wind.

Potential Drawbacks

• Requires Lateral Run-Off Space: You must have horizontal fence space equal to the driveway opening width plus an additional 20% to 30% allowance for motor overhang or cantilever tails.

• Track Maintenance: For V-track systems, leaves, ice, gravel, and mud inside the ground track can cause track jumps or motor obstruction trips.

Understanding Automatic Swing Gates

Swing gates operate similarly to standard interior doors, rotating on heavy-duty hinges attached to stout end posts or masonry pillars. They can be engineered as a single large leaf or a double-leaf (bi-parting) configuration.

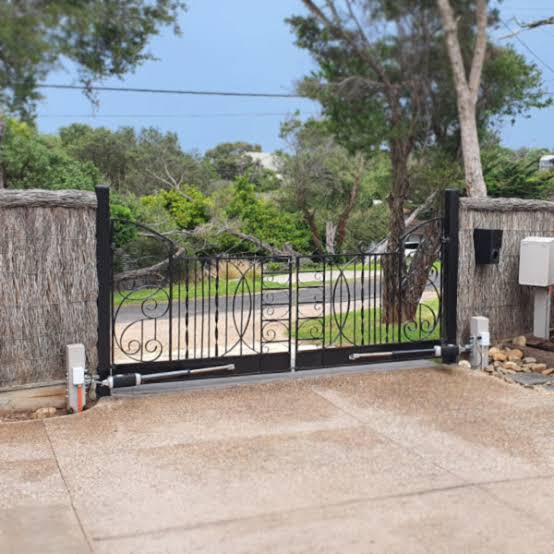

Automatic Double Swing Gate Installation. Source: Richmond Rolling Solutions

Mechanics: Linear Actuators vs. Underground Hydraulics

Swing operators open the gate leaf via three primary drive mechanics:

1. Linear Screw / Hydraulic Arms: Mounted directly to the post and gate panel, these arms push or pull the gate through its swinging arc.

2. Articulated (Pillar) Arms: Uses a hinged mechanical elbow, making it ideal for wide brick pillars where geometry makes linear arms difficult to mount.

3. Underground Hydraulic Operators: Hidden beneath the surface in sealed foundation boxes for a seamless, invisible look on luxury estates.

Key Advantages of Swing Gates

• Lower Initial Installation Costs: Swing gates generally require less ground foundation work than V-track sliding systems, lowering initial installation labor costs.

• Zero Lateral Space Required: Ideal for properties flanked by side structures, property boundaries, or dense landscaping where horizontal sliding run-off is impossible.

• Quiet & Low Maintenance: With fewer ground-level moving parts exposed to dirt, swing gates generally experience less roller wear.

• Classic Estate Aesthetics: Double swing gates opening inward provide an elegant, high-end arrival experience.

Potential Drawbacks

• Large Swing Radius Needed: Cars must stop well back from the gate while waiting for it to open.

• Slope Sensitivity: Inward-swinging gates cannot open over driveways that slope upward toward the home without specialized rising hinges or outward opening setups (which can encroach on public sidewalk space).

• Wind Loading: Large solid-panel swing gates act like sails during high winds, placing immense torque on hinges and operator gearboxes.

5 Decision Factors: Choosing the Right Gate for Your Site

When evaluating your property layout, consider these crucial site factors before placing an order:

Step 1: Check Slope (Uphill driveway? Choose Sliding)
Step 2: Check Lateral Clearance (Fence length < Opening width? Choose Swing)
Step 3: Check Driveway Depth (Short vehicle turn-in? Choose Sliding)
Step 4: Check Wind Exposure (High-wind open area? Choose Sliding or Louvered Swing)
Step 5: Check Aesthetic Preference (Classic look? Choose Swing | Modern/Industrial? Choose Sliding)

1. Driveway Slope & Topography

Measure the grade of your driveway entrance. If your driveway rises immediately after the property line, an inward-swinging gate will scrape against the pavement. A sliding gate follows the flat lateral plane of your fence, making it the superior option for hilly terrain.

2. Available Lateral Run-Off vs. Driveway Depth

If your opening is 12 feet wide, a sliding gate needs at least 14 to 16 feet of unobstructed horizontal space along your side fence. If a wall or property line cuts off that space, a swing gate is your only practical option. Conversely, if your driveway is short and you park cars right near the entrance, a sliding gate saves essential parking depth.

3. Local Weather & Environmental Conditions

In regions prone to severe winter freezes, snow accumulation, or falling debris, cantilever sliding gates or swing gates perform better than ground V-tracks, which can freeze over or pack with ice. In high-wind coastal or open valley areas, swing gates require open-picket designs to allow air passage and avoid overloading motor gears.

4. Security & Access Control Integration

Both gate formats support high-tech automation systems. Whether you choose sliding or swing mechanics, you can integrate card readers, smartphone apps, and wireless keypads. Learn more about custom options by visiting our detailed guide on access control systems.

5. Total Cost of Ownership

Initial purchase price is only part of the story. While a basic swing gate kit costs less upfront, long-term costs level out when accounting for structural maintenance. For commercial properties with high traffic volume, sliding systems often deliver longer motor service lifespans under continuous duty cycles. Explore specialized commercial setups on our commercial gate solutions page.

Installation & Maintenance Best Practices

Whichever gate type you select, proper installation and ongoing care determine how long your motor, hinges, and logic boards last.

• Concrete Foundations: V-track sliding gates require a continuous steel-reinforced concrete strip poured across the entire driveway opening to prevent ground settling.

• Power & Wiring: Ensure main line-voltage conduit is buried below local frost lines and wired into a dedicated GFCI breaker.

• Routine Lubrication: Apply marine-grade grease to swing hinges every six months. For sliding systems, clean ground tracks monthly and spray sealed roller bearings with dry silicone lubricant.

If your current automated opener is struggling or making grinding noises, learn how to troubleshoot common issues in our companion guide on electric gate repair. If your motor system is outdated or beyond repair, check out our options for gate opener repair and replacement.

To ensure your investment remains reliable year-round, review our preventative automatic gate maintenance programs.

Frequently Asked Questions (FAQ)

1. Which automatic gate type is safer for families with children and pets?

Both sliding and swing automatic gates are equally safe when equipped with modern UL 325 compliant safety devices. These include optical photo-eye safety sensors, dual-technology obstruction sensing, and safety edge strips. Ensure your installer calibrates automatic reversing features during setup regardless of gate format.

2. Can I convert a manual swing gate into an automatic sliding gate?

While you can automate an existing manual swing gate leaf, converting a swing leaf into a sliding system usually requires replacing the panel entirely. Sliding gates require a rigid bottom rail designed to mount drive racks or ground wheels, whereas swing leaves lack this structural framing.

3. Which opens faster: a sliding gate or a swing gate?

Dual swing gates generally clear a driveway opening slightly faster than a single long sliding gate because two shorter leaves travel a smaller physical distance simultaneously. However, modern high-speed sliding gate operators can achieve speeds up to 12 to 15 inches per second, narrowing the performance gap.

4. What happens to my sliding or swing gate during a power outage?

Every residential automatic gate opener includes a manual key or lever release disengage mechanism. Activating this manual release allows you to push or swing the gate open by hand. Adding an internal 12V or 24V battery backup system ensures automatic operation during power outages.

5. Are sliding gates more expensive to install than swing gates?

Yes, sliding gates typically carry a 15% to 30% higher upfront installation cost. This difference stems from the extra concrete ground track work, track alignment labor, and larger single-panel structural requirements compared to standard swing post setups.

Final Verdict: Which Gate Is Right for You?

Choose a Sliding Gate if:

• Your driveway slopes upward immediately after the property line.

• You have limited driveway depth and want to park right up to the entrance.

• You live in a high-wind area and prefer a solid privacy design.

• You want high structural security against physical forcing.

Choose a Swing Gate if:

• You have limited or no lateral fence space alongside the driveway opening.

• You prefer a classic, grand entrance aesthetic for a luxury home or estate.

• You want a lower initial installation cost without ground track masonry work.

• Your driveway is level and offers plenty of vehicle setback space.
